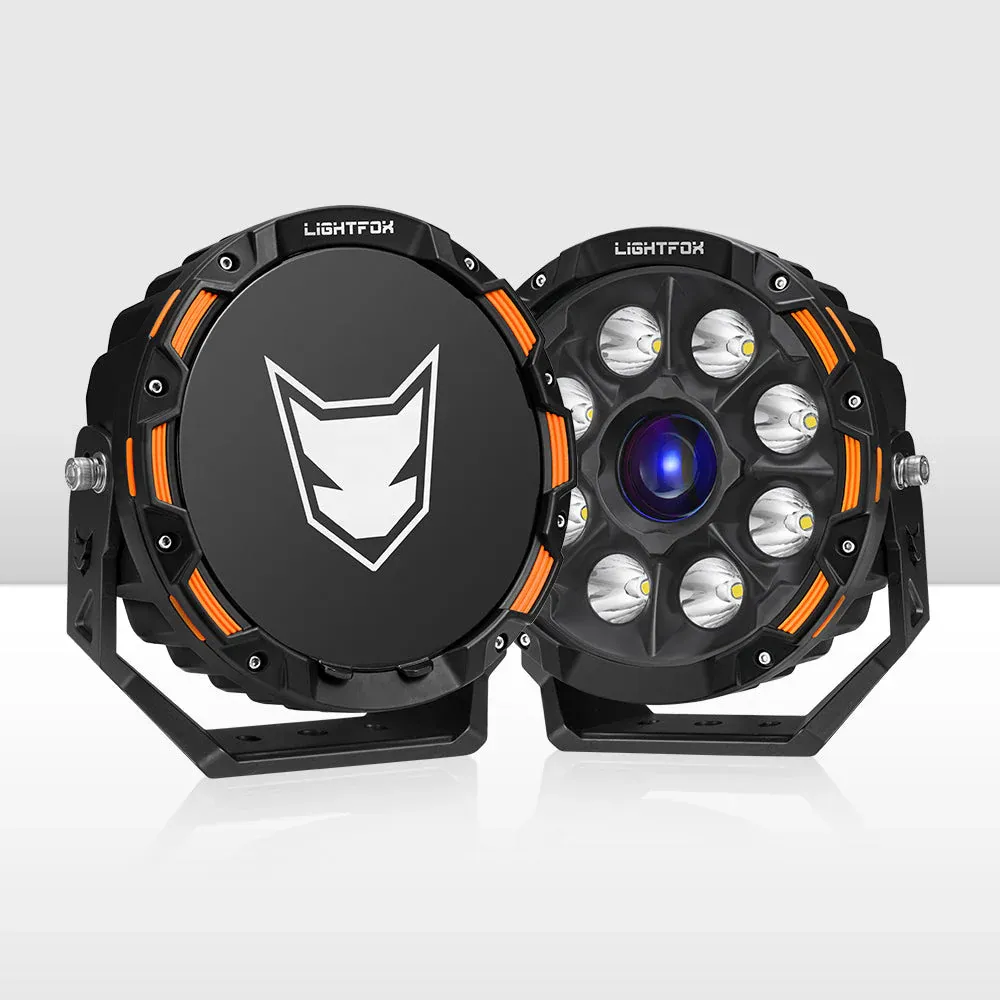

The Lightfox 9" Laser LED Driving Lights are engineered for extreme distance and pinpoint accuracy. Featuring a laser/LED hybrid system, these spotlights achieve a staggering 1Lux@2,226m (7,302ft) with a combined output of 15,046 lumens (pair). Designed for serious off-roaders and long-distance touring, these lights cut through the darkest trails and open roads with unrivalled intensity. A 5° hyperspot and 15° spot beam configuration, coupled with Vision Drive reflector technology, ensures nothing escapes your line of sight—even at speed.
Light Source: | Laser/LED Hybrid |
LED Chip: | 10W × 16 High Performance LEDs (pair) |
Laser Chip: | High-Performance Laser Chips |
Theoretical Output: | 224W (pair) |
Raw Lumens: | 15,046 (pair) |
Lux Rating: | 1Lux@2,226m (7,302ft) |
Colour Temperature: | 5,700K |
Beam Type: | Hyperspot (5°) + Spot (15°) |
Reflector Distribution: | 1 Laser + 8 Spot (per light) |
Vision Tech: | Curved & Metalised Reflectors |
Amp Draw: | 15.56A @ 14.4V (pair) |
Voltage Range: | 12V – 30V |
Housing & Heat Sinks: | Aluminium |
Coating: | AkzoNobel Powder |
Lens Cover: | Strengthened PC |
Sealing Material: | UV Resin |
Bracket: | 0.5" Die-cast Aluminium |
Ingress Protection: | IP68 |
Expected Lifespan: | 50,000 Hours |
Relative Light Intensity: | 78% @ 302°F |
Operating Temperature: | -40°F to 302°F |
Product Dimensions (with Bracket): | 9.78 x 8.67 x 3.6 inches (LxWxH) |
Package Dimensions: | 20.47 x 13.69 x 6.3 inches |
Package Weight: | 17.68lb |
